US Battery Possible Configurations for
for Using 6, 8, & 12 Volt Batteries
Please click on any configuration to learn more about it’s specification and possible applications.
DOUBLE VOLTAGE
AMPS REMAIN THE SAME
CONFIGURATION 1

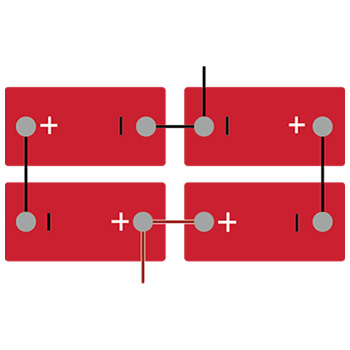

DOUBLE VOLTAGE
DOUBLE CAPACITY
CONFIGURATION 2
DOUBLE VOLTAGE
INCREASE CAPACITY BY 3X’s
CONFIGURATION 3

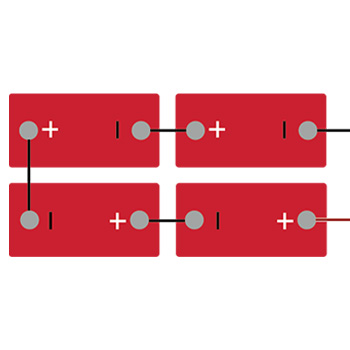

QUADRUPLE VOLTAGE
CAPACITY REMAINS THE SAME
CONFIGURATION 4

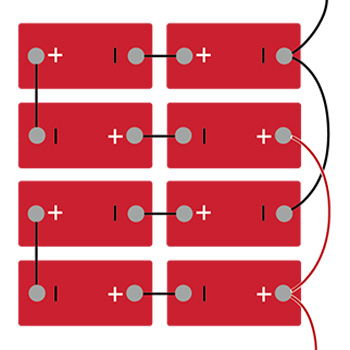

QUADRUPLE VOLTAGE
DOUBLE CAPACITY
CONFIGURATION 5

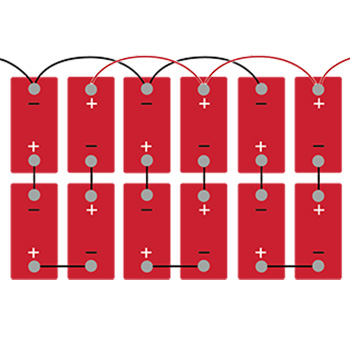

QUADRUPLE VOLTAGE
TRIPLE CAPACITY
CONFIGURATION 6
DOUBLE CAPACITY
VOLTAGE REMAINS THE SAME
CONFIGURATION 7

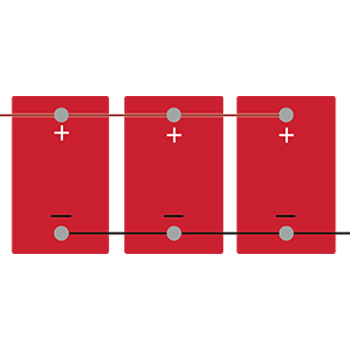

TRIPLE CAPACITY
VOLTAGE REMAINS THE SAME
CONFIGURATION 8
