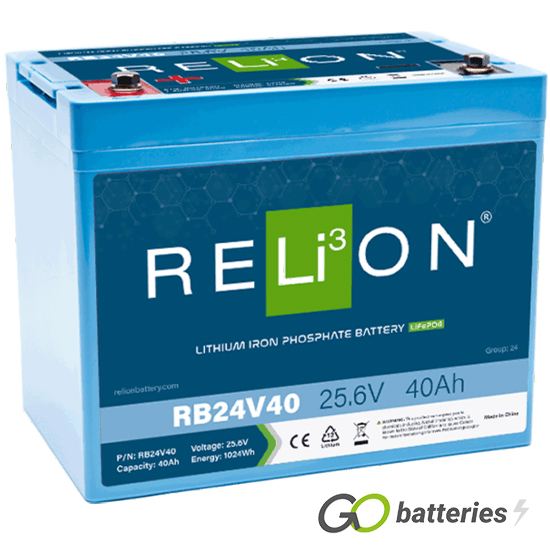

RB24V40 Relion Lithium LiFePO4 24V 40Ah Battery

£803.52 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 16 weeks from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

This RELiON RB24V40 Lithium-ion phosphate battery is perfect in many renewable energy applications. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V40 lithium solar battery meets UL, CE and IEC certifications.

Additional information

Weight	13.2 kg
Technology	Lithium-ion (LiFePO4)
Nominal Voltage	25.6 Volt
Nominal Capacity	40 Ah
Nominal Energy	1024Wh
Resistance	≤40 mΩ @ 50% SOC
Charge Voltage	28 V – 29.2 V
Discharge Under-Voltage Protection	16 V (2.0 ±0.08 vpc)
Standard Charge Current	2A – 10A
Maximum Continuous Charge Current	30A
Maximum Continuous Discharge Current	30A
Peak Discharge Current	70 A (7.5 s ±2.5 s)
Bluetooth	No
Length	260 mm
Width	168 mm
Height (inc. Terminals)	210 mm
Warranty	3 Years
Terminals	/wp-content/uploads/2017/03/LTerminal.jpg

Data Sheet

Relion RB24V40 Datasheet
