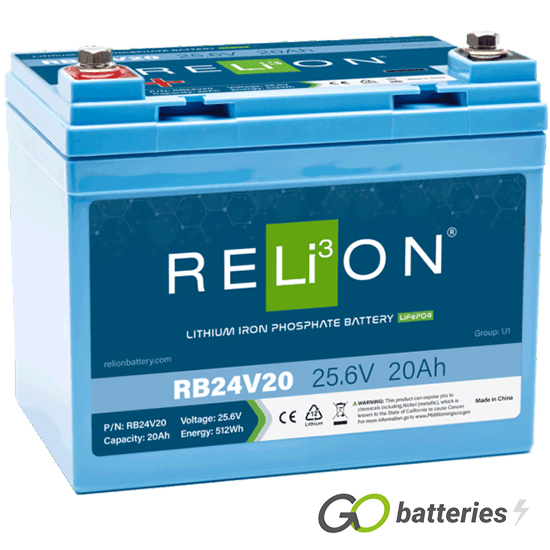

Relion RB24V20 24 volt 20 amp Lithium Battery. All blue case with threaded terminals into the battery.

RB24V20 Relion Lithium LiFePO4 24V 20Ah Battery

£399.90 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 16 weeks from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

This RELiON RB24V20 Deep Cycle Lithium-ion phosphate battery is perfect in many applications, including solar energy systems. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V20 lithium battery meets UL, UN, CE and IEC certifications.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

APPLICATIONS

  • Solar

Additional information

Weight 5.4 kg
Technology

Lithium-ion (LiFePO4)
Nominal Voltage

25.6 Volt
Nominal Capacity

20 Ah
Nominal Energy

512Wh
Resistance

50 mΩ @ 50% SOC
Charge Voltage

28.4 V – 29.2 V
Discharge Under-Voltage Protection

16.0 V (2.0 ±0.08 vpc) (20 ±6 ms)
Standard Charge Current

1A – 10A
Maximum Continuous Charge Current

30A
Maximum Continuous Discharge Current

30A
Peak Discharge Current

60 A (7.5 s ±2.5 s)
Bluetooth

No
Length

195 mm
Width

131 mm
Height (inc. Terminals)

171 mm
Warranty

3 Years
Terminals

/wp-content/uploads/2017/03/LTerminal.jpg

Data Sheet

Relion RB24V20 DatasheetRelion RB24V20 Datasheet
