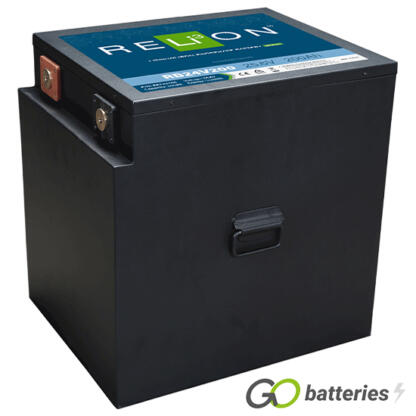

RB24V200 Relion Lithium LiFePO4 24V 200Ah Battery

£3,753.60 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 16 weeks from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

This RELiON RB24V200 Lithium-ion phosphate battery is perfect in many solar applications. It maintains consistent power and is equipped with an M10 terminal type and built-in battery management system (BMS). The RB24V200 battery meets UL, CE and IEC certifications.

Additional information

Weight	50 kg
Technology	Lithium-ion (LiFePO4)
Nominal Voltage	25.6 Volt
Nominal Capacity	200 Ah
Nominal Energy	5120Wh
Resistance	≤35 mΩ @ 50% SOC
Charge Voltage	28.4 V – 29.2 V
Discharge Under-Voltage Protection	18.4 V (2.3 ±0.1 vpc) (100 ±50 ms)
Standard Charge Current	10A – 100A
Maximum Continuous Charge Current	200A
Maximum Continuous Discharge Current	200A
Peak Discharge Current	250 A (7.5 s ± 2.5 s)
Bluetooth	No
Length	410 mm
Width	367 mm
Height (inc. Terminals)	417 mm
Warranty	3 Years

Data Sheet

Relion RB24V200 Datasheet
