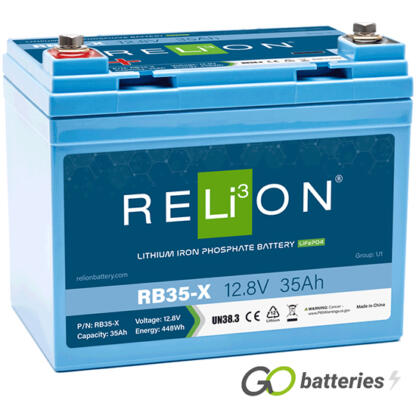

RB35-X Relion Lithium LiFePO4 12V 35Ah Battery

£389.99 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 16 weeks from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

The RELiON RB35-X Lithium-ion deep cycle battery is part of the RELiON X-Series. Our X-Series batteries allow for higher peak and higher continuous discharge currents compared to our standard lithium batteries of the same size.

This LiFePO4 battery is ideal for solar, if you have a physical size constraint but need higher power, or if you want to increase the power but you don’t need the extra energy that comes in our standard lithium offering.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

This efficient and fast-charging 12V 35Ah lithium-ion phosphate battery is equipped with an M8 terminal type and a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

APPLICATIONS

  • Mobility Scooters
  • AWP
  • Floor Machines
  • Solar

Additional information

Weight 5.2 kg
Technology

Lithium-ion (LiFePO4)

Nominal Voltage

12.8 Volt

Nominal Capacity

35 Ah

Nominal Energy

448Wh

Resistance

≤50 mΩ @ 50% SOC

Charge Voltage

14.2 V – 14.6 V

Discharge Under-Voltage Protection

8.0 V (2.0 ±0.08 vpc) (144 ±30 ms)

Standard Charge Current

1.75A – 17.5A

Maximum Continuous Charge Current

70A

Maximum Continuous Discharge Current

70A

Peak Discharge Current

100 A (7.5 s ±2.5 s)

Bluetooth

No

Length

195 mm

Width

131 mm

Height (inc. Terminals)

171 mm

Warranty

3 Years

Terminals

/wp-content/uploads/2017/03/LTerminal.jpg

Data Sheet

Relion RB35-X DatasheetRelion RB35-X Datasheet
