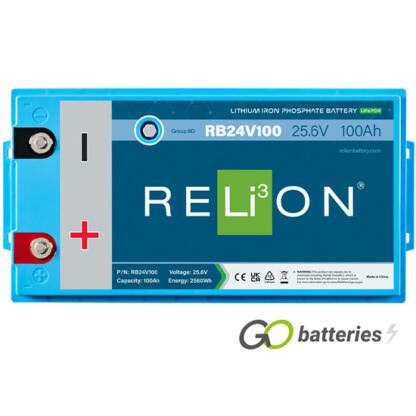

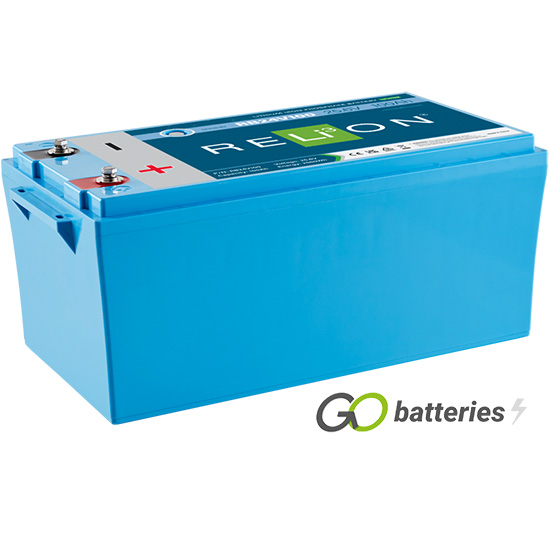

RB24V100 Relion Lithium LiFePO4 24V 100Ah Battery

£1,875.84 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 1 week from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

This RELiON RB24V100 Lithium-ion phosphate battery is perfect in many applications, including Marine and Electric Vehicles. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection. It is much lighter and far more practical than lead-acid batteries and are extremely reliable with up to 10 times longer life span than lead-acid equivalents.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

APPLICATIONS

  • Marine
  • AWP
  • Solar
  • Renewable Systems

Additional information

Weight 27.7 kg
Technology

Lithium-ion (LiFePO4)

Nominal Voltage

25.6 Volt

Nominal Capacity

100 Ah

Nominal Energy

2560Wh

Resistance

≤30 mΩ @ 50% SOC

Charge Voltage

28.4 V – 29.2 V

Discharge Under-Voltage Protection

16 V (2.0 ±0.08 vpc) (20 ±6 ms)

Standard Charge Current

5A – 50A

Maximum Continuous Charge Current

100A

Maximum Continuous Discharge Current

100A

Peak Discharge Current

200 A (7.5 s ±2.5 s)

Bluetooth

No

Length

522 mm

Width

267 mm

Height (inc. Terminals)

220 mm

Warranty

3 Years

Terminals

/wp-content/uploads/2017/03/RComm-Screw-In-Terminal.jpg

Data Sheet

Relion RB24V100 DatasheetRelion RB24V100 Datasheet
