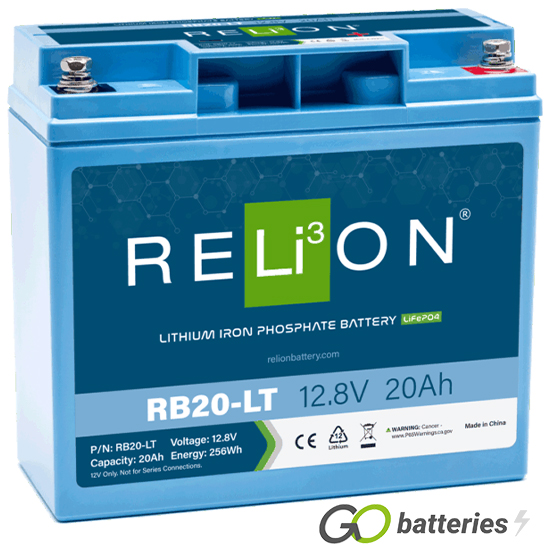

RB20-LT Relion Cold Weather Lithium 12V 20Ah Battery
RB20-LT Relion Cold Weather Lithium 12V 20Ah Battery - Image 2

RB20-LT Relion Cold Weather Lithium 12V 20Ah Battery

£261.96 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 16 weeks from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

The RELiON RB20-LT is a 12V 20Ah lithium-ion battery and is part of RELiON’s Low-Temperature Series. This compact and powerful lithium-ion phosphate LiFePO4 battery is specifically designed for cold weather performance, as it can safely charge at temperatures down to -20°C (-4°F). The system features proprietary technology which draws power from the charger itself, uniformly heating the cells within the battery to 41°F (5°C), so that it can be charged at its full recommended current. RELiON’s LT Series batteries require no additional components such as heating blankets.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

The entire process of heating and charging with the LT Series is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest. Because it takes time to heat the cells, the charging process in below freezing temperatures could take a little longer.

The RB20-LT is ideal in a variety of applications including small solar energy systems, remote monitoring, LED lighting and traffic control cameras. It has all the benefits of lithium batteries including installation flexibility and no maintenance, with the added ability to charge in cold weather climates. It’s equipped with an M6 terminal type and a built-in battery management system (BMS).

APPLICATIONS

  • Camping
  • Solar

Additional information

Weight 3 kg
Technology

Lithium-ion (LiFePO4)
Nominal Voltage

12.8 Volt
Nominal Capacity

20 Ah
Nominal Energy

256Wh
Resistance

≤45 mΩ @ 50% SOC
Charge Voltage

14.2 V – 14.6 V
Discharge Under-Voltage Protection

8.0 V (2.0 ±0.08 vpc) (20 ±8 ms)
Standard Charge Current

1A – 10A
Maximum Continuous Charge Current

20A
Maximum Continuous Discharge Current

20A
Peak Discharge Current

40 A (7.5 s ±2.5 s)
Bluetooth

No
Length

181 mm
Width

76 mm
Height (inc. Terminals)

169 mm
Warranty

3 Years
Terminals

/wp-content/uploads/2017/03/RTerminal.jpg

Data Sheet

Relion RB20-LT DatasheetRelion RB20-LT Datasheet
