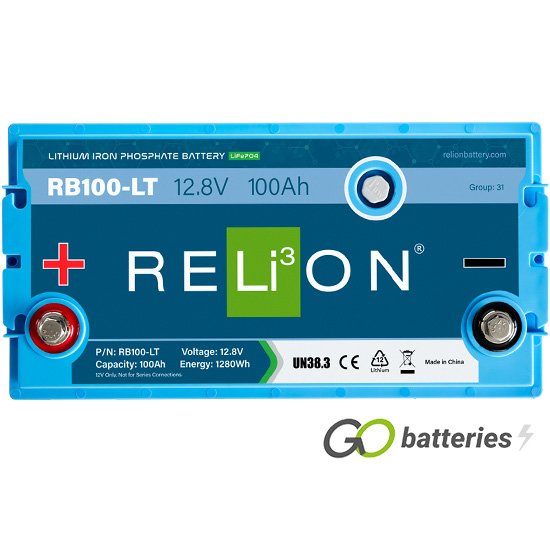

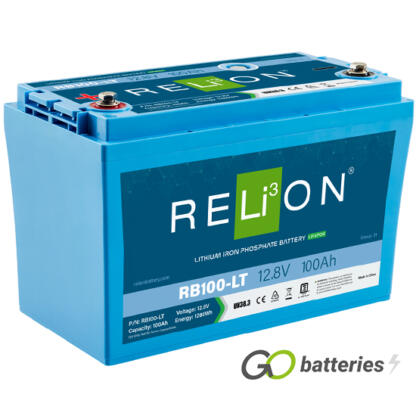

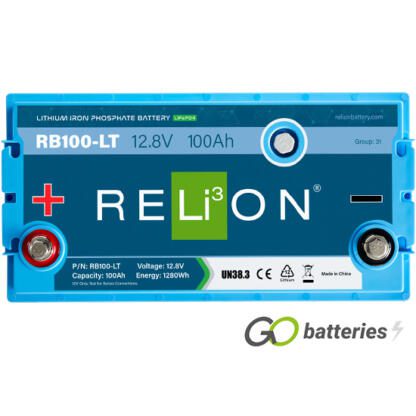

Relion RB100-LT lithium battery. 12 volt 100 amp, blue case with threaded terminals into the battery.
RB100-LT Relion Cold Weather Lithium LiFePO4 12V 100Ah Battery - Image 2
RB100-LT Relion Cold Weather Lithium LiFePO4 12V 100Ah Battery - Image 3

RB100-LT Relion Cold Weather Lithium LiFePO4 12V 100Ah Battery

£1,066.46 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 1 week from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

The RB100-LT is a 12V 100Ah lithium-ion battery is an ideal choice for use in recreational vehicles, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary. This lithium-ion phosphate battery is specially designed for cold weather performance. RELiON’s LT Series batteries can safely charge at temperatures down to -20°C (-4°F). The system features proprietary technology which draws power from the charger itself, uniformly heating the cells within the battery to 41°F (5°C), so that it can be charged at its full recommended current. RELiON’s LT Series batteries require no additional components such as heating blankets.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

The entire process of heating and charging with the LT Series is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest. Because it takes time to heat the cells, the charging process in below freezing temperatures could take a little longer.

The Low-Temperature Series battery has the same size and performance as other RELiON batteries but can safely charge when temperatures drop as low as -20°C using a standard charger. The RB100-LT is an ideal choice for use in RVs, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary.

APPLICATIONS

  • Marine
  • Backup Power
  • Electric Vehicles
  • Recreational Vehicles
  • Solar

Additional information

Weight 12.6 kg
Technology

Lithium-ion (LiFePO4)
Nominal Voltage

12.8 Volt
Nominal Capacity

100 Ah
Nominal Energy

1280Wh
Resistance

≤30 mΩ @ 50% SOC
Charge Voltage

14.2 V – 14.6 V
Discharge Under-Voltage Protection

9.2 V (2.3 ±0.08 vpc) (4.7 ±1 s)
Standard Charge Current

5A – 50A
Maximum Continuous Charge Current

100A
Maximum Continuous Discharge Current

100A
Peak Discharge Current

200 A (7.5 s ±2.5 s)
Bluetooth

No
Length

329 mm
Width

172 mm
Height (inc. Terminals)

214 mm
Warranty

3 Years
Terminals

/wp-content/uploads/2017/03/LTerminal.jpg

Data Sheet

Relion RB100-LT DatasheetRelion RB100-LT Datasheet
