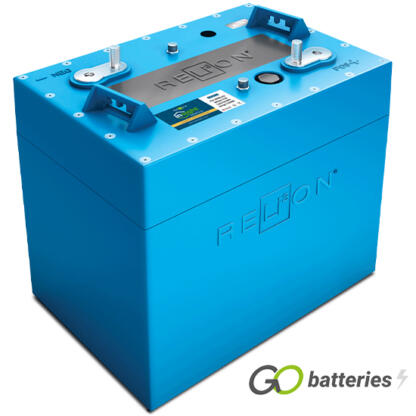

Relion InSight 24 volt 60 amp Lithium Battery. All blue case with dual terminals and hooks for a lifting strap.
InSight 24V 60Ah Relion Lithium Traction Battery (GC2) - Image 2
InSight 24V 60Ah Relion Lithium Traction Battery (GC2) - Image 3
InSight 24V 60Ah Relion Lithium Traction Battery (GC2) - Image 4

InSight 24V 60Ah Relion Lithium Traction Battery (GC2)

£1,680.00 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 1 week from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

The RELiON InSight 24V 60Ah Lithium-ion phosphate battery is a GC2 sized drop-in replacement battery that delivers high quality performance, power and precision. This 24V 60 Ah battery was designed specifically to meet the power and energy requirements in floor machines, electric motorised hand trucks, walk-behind pallet jacks, and other material handling applications.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

InSight batteries are drop-in ready and easy to install, just connect them in parallel for the capacity you need. No need to modify trays, no complicated connections, and no heavy lifting. They’re also scalable, so you can provide increased power and energy as needed. InSight batteries are connected in parallel which means you have the freedom and flexibility to use the right amount of batteries for your equipment, typically two to six batteries.

InSight batteries also feature an elegant BMS that provides precision balancing within a battery and between batteries in a parallel system without the need for charging batteries individually. In addition, our proprietary software determines and manages regenerative currents, unlike any other battery solution, avoiding unnecessary battery disconnects.

With InSight, you get unmatched quality and performance, from the inside out. It’s the only lithium battery like it on the market today!

APPLICATIONS

  • Floor Machines
  • Utility Vehicles
  • Ariel Work Platforms
  • AWP

Additional information

Weight 15.6 kg
Technology

Lithium-ion (LiFePO4)
Nominal Voltage

25.6 Volt
Nominal Capacity

60 Ah
Nominal Energy

1536Wh
Impedance (50% SOC, 1kHz)

<150mΩ
Cycles @ 80% DOD

>3500
Parallel Capable

Yes (up to 10)
Series Capable

No
Peak Charge Voltage

28.5V
Low Voltage Protection

2.8V/cell (22.4V)~6 months @ 25°C (60°F)
Continuous Charge Current

≤ 60A (1C)
Disconnect Charge Current

lbatt>60A, 5s Ibatt>100A, 0.5s
Continuous Discharge Current

60A
Peak Over Current

100A<lbatt<300A 50s, 200A<lbatt<360A 2s, 360A<lbatt<500A 1s, Ibatt>500A 0.5s
Short Circuit Protection

>500A
Length

260 mm
Width

180 mm
Height (inc. Terminals)

276 mm
Warranty

3 Year
Terminals

/wp-content/uploads/2017/03/Diagonal-Layout-Dual-Post.jpg

Data Sheet

Relion InSight 24V GC2 DatasheetRelion InSight 24V GC2 Datasheet
