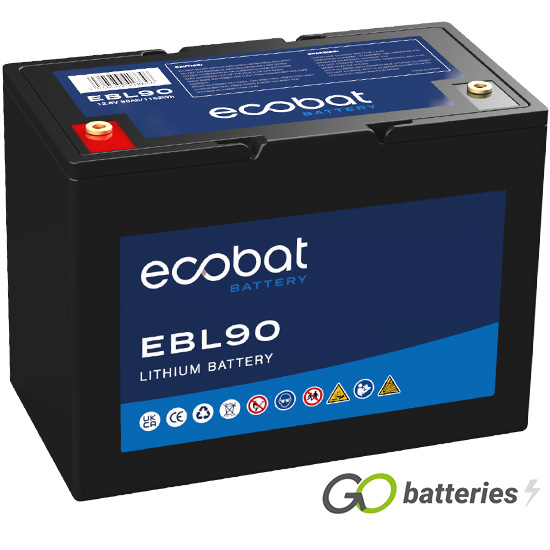

EBL90 Ecobat Lithium Deep Cycle LiFePO4 12V 90Ah Battery (LSLC104-12)

£555.73 Inc VAT

Guaranteed next working day delivery on orders before 1pm

PRODUCT DESCRIPTION

Ecobat deep cycle lithium battery range have been designed as a quality drop-in replacement for Lead-Acid batteries covering a wide range of applications.

The Ecobat EBL90 Lithium-ion battery is a safer and lighter alternative to Lead-Acid in your Solar, Marine, Recreational Vehicle and other deep cycle applications. The EBL90 is a deep cycle lithium-ion phosphate (LiFePO4) battery which is 12.5 Kg, this is less than half the weight of a Lead-Acid equivalent and is ideal for deep cycle applications where you require lots of power for long periods of time.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

Ecobat’s EBL90 maintains consistent power and is equipped with a carrying handle and a built-in battery management system (BMS). Lead-Acid batteries need to be maintained, if they are not properly maintained, their life span is shortened. Because lithium batteries require no active maintenance a one-time purchase guarantees better lifetime value.

KEY ADVANTAGES OVER TRADITIONAL LEAD-ACID BATTERIES:

  • Voltage remains constant for much longer during discharge.
  • Much higher charging rate and so faster charging – varies according to the charging system used.
  • Can be discharged quickly without damaging the cells, making them ideal for use with inverters.
  • Can be discharged as much as 95% on average without damaging the battery.
  • Thousands of charging cycles compared to just a few hundred from a typical lead-acid battery.
  • Very low rate of self-discharge means they can be left unattended for months.
  • Zero maintenance required.
  • Approximately 40% – 50% lighter than a good quality lead-acid battery with a similar Ah rating.
  • The ability to charge quickly from the vehicle’s engine can remove the need for a generator or fuel cell.
  • Can be used in almost every situation where a lead-acid battery is being used to power appliances in a motorhome, campervan or caravan.

FEATURES:

LiFePO4 Deep Cycle Battery. Drop in replacement for Lead-Acid batteries for a wide range of applications.

  • 100% Usable Energy: 100% Depth of Discharge, Fully Utilise Each Charges.
  • Wide-Range Certificated: UL, UN38.3, CE, MSDS, etc.
  • Safety First: LiFePO4 Technology Armed with BMS.
  • Drop-In Replacement: Simple and Powerful, Connect and Go.
  • Rival Weight: Nearly Half of the Weight of the Lead-Acid Equivalent.
  • 10 Years Run Time: 4000 Cycle Life Equivalent To 10-15 Years Service Life.

APPLICATIONS

  • Marine
  • Electric Vehicles
  • Floor Machines
  • Live Aboard Boat
  • Electric Outboards
  • Motorhome
  • Recreational Vehicles
  • Communications
  • Leisure
  • AWP
  • Camping
  • Solar
  • Remote Surveillance

Additional information

Weight 12.5 kg
Technology

Lithium-ion (LiFePO4)

Nominal Voltage

12.8 Volt

Nominal Capacity

90 Ah

Nominal Energy

1152Wh

Internal Impedance

≤10mΩ

Charge Voltage

14.4V

Discharge Cut-off Voltage

9.2V

Standard Charge Current

50A

Max. Charge Current

100A

Standard Discharge Current

50A

Max. Discharge Current

100A

Peak Discharge Current

200A<5S

Bluetooth

No

Length

307 mm

Width

172 mm

Height (inc. Terminals)

212 mm

Warranty

5 Years

Terminals

/wp-content/uploads/2017/03/LScrew-In-Terminal.jpg

Data Sheet

Ecobat EBL90 DatasheetEcobat EBL90 Datasheet
