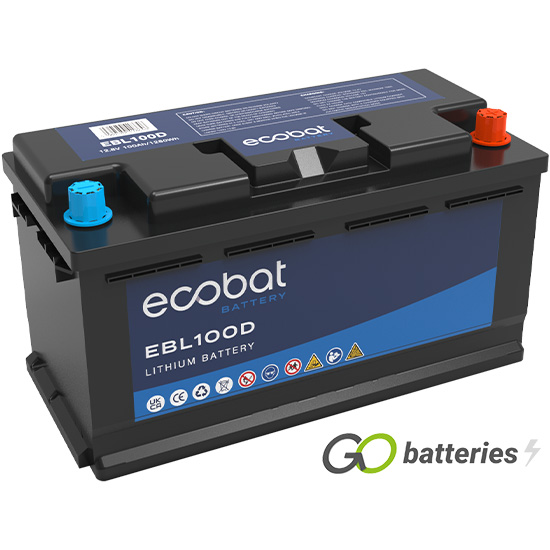

EBL100D Ecobat Lithium Deep Cycle LiFePO4 12V 100Ah Battery (XV25MF) (XDC25AGM)

£539.87 Inc VAT

Guaranteed next working day delivery on orders before 1pm

PRODUCT DESCRIPTION

Ecobat deep cycle lithium battery range have been designed as a quality drop-in replacement for Lead-Acid batteries covering a wide range of applications.

The Ecobat EBL100D Lithium-ion battery is very popular in the leisure range and is a safer, more lightweight alternative in your application. The EBL100D is a European DIN size battery. The EBL100D is a deep cycle lithium-ion phosphate (LiFePO4) battery which is 12.5 Kg, this is less than half the weight of a Lead-Acid or AGM equivalent and is ideal for deep cycle applications where you require lots of power for long periods of time.

This battery MUST be charged with an appropriate Lithium charger to prevent damaging the battery!

Ecobat’s EBL100D maintains consistent power and is equipped an automotive type terminal and a built-in battery management system (BMS). The EBL100D surpasses expectations being versatile, compact and more powerful than it’s Lead-Acid counterparts making it ideal for applications including recreational vehicles, marine, solar energy systems and more. Lead-Acid batteries need to be maintained, if they are not properly maintained, their life span is shortened. Because lithium batteries require no active maintenance a one-time purchase guarantees better lifetime value.

KEY ADVANTAGES OVER TRADITIONAL LEAD-ACID BATTERIES:

  • Voltage remains constant for much longer during discharge.
  • Much higher charging rate and so faster charging – varies according to the charging system used.
  • Can be discharged quickly without damaging the cells, making them ideal for use with inverters.
  • Can be discharged as much as 95% on average without damaging the battery.
  • Thousands of charging cycles compared to just a few hundred from a typical lead-acid battery.
  • Very low rate of self-discharge means they can be left unattended for months.
  • Zero maintenance required.
  • Approximately 40% – 50% lighter than a good quality lead-acid battery with a similar Ah rating.
  • The ability to charge quickly from the vehicle’s engine can remove the need for a generator or fuel cell.
  • Can be used in almost every situation where a lead-acid battery is being used to power appliances in a motorhome, campervan or caravan.

FEATURES:

LiFePO4 Deep Cycle Battery. Drop in replacement for Lead-Acid batteries for a wide range of applications.

  • 100% Usable Energy: 100% Depth of Discharge, Fully Utilise Each Charges.
  • Wide-Range Certificated: UL, UN38.3, CE, MSDS, etc.
  • Safety First: LiFePO4 Technology Armed with BMS.
  • Drop-In Replacement: Simple and Powerful, Connect and Go.
  • Rival Weight: Nearly Half of the Weight of the Lead-Acid Equivalent.
  • 10 Years Run Time: 4000 Cycle Life Equivalent To 10-15 Years Service Life.

APPLICATIONS

  • Marine
  • Electric Vehicles
  • Floor Machines
  • Live Aboard Boat
  • Electric Outboards
  • Motorhome
  • Recreational Vehicles
  • Communications
  • Leisure
  • AWP
  • Camping
  • Solar
  • Remote Surveillance

Additional information

Weight 12.5 kg
Technology

Lithium-ion (LiFePO4)

Nominal Voltage

12.8 Volt

Nominal Capacity

100 Ah

Nominal Energy

1280Wh

Internal Impedance

≤10mΩ

Charge Voltage

14.4V

Discharge Cut-off Voltage

9.2V

Standard Charge Current

20A

Max. Charge Current

100A

Standard Discharge Current

60A

Max. Discharge Current

100A

Peak Discharge Current

200A<5S

Bluetooth

No

Length

355 mm

Width

175 mm

Height (inc. Terminals)

190 mm

Warranty

5 Years

Terminals

/wp-content/uploads/2017/03/RTerminal-Post.jpg

Data Sheet

Ecobat EBL100D DatasheetEcobat EBL100D Datasheet
