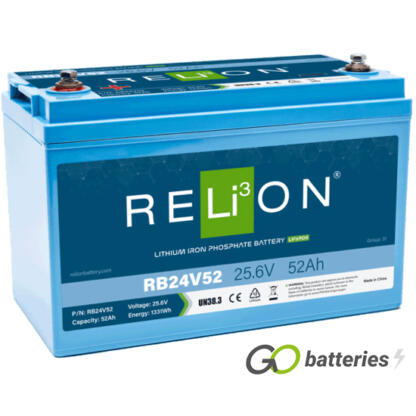

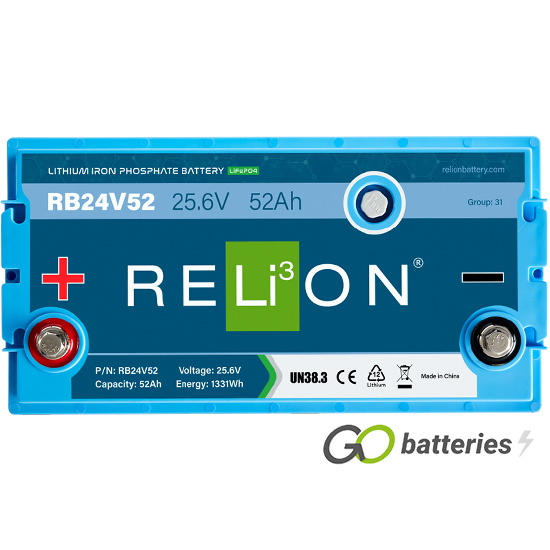

RB24V52 Relion Lithium LiFePO4 24V 52Ah Battery

£996.48 Inc VAT

Guaranteed next working day delivery on orders before 1pm

This product is a special order and lead-time is approximately 1 week from order.

PRODUCT DESCRIPTION

Take advantage of the latest in battery technology.

This RELiON RB24V52 Lithium-ion phosphate battery is perfect in many applications, including Marine and Electric Vehicles. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RB24V52 battery meets UL, CE and IEC certifications and now has improved protection with an IP67 ingress protection rating, which completely repels dust and resists water ingress for up to 30 minutes submerged at 1 meter.

Additional information

Weight	13.2 kg
Technology	Lithium-ion (LiFePO4)
Nominal Voltage	25.6 Volt
Nominal Capacity	52 Ah
Nominal Energy	1280Wh
Resistance	≤60 mΩ @ 50% SOC
Charge Voltage	28.4 V – 29.2 V
Discharge Under-Voltage Protection	16.0 V (2.0 ±0.08 vpc) (20 ±6 ms)
Standard Charge Current	2.5A – 25A
Maximum Continuous Charge Current	50A
Maximum Continuous Discharge Current	50A
Peak Discharge Current	100 A (7.5 s ±2.5 s)
Bluetooth	No
Length	329 mm
Width	172 mm
Height (inc. Terminals)	214 mm
Warranty	3 Years
Terminals	/wp-content/uploads/2017/03/LTerminal.jpg

Data Sheet

Relion RB24V52 Datasheet
